Description

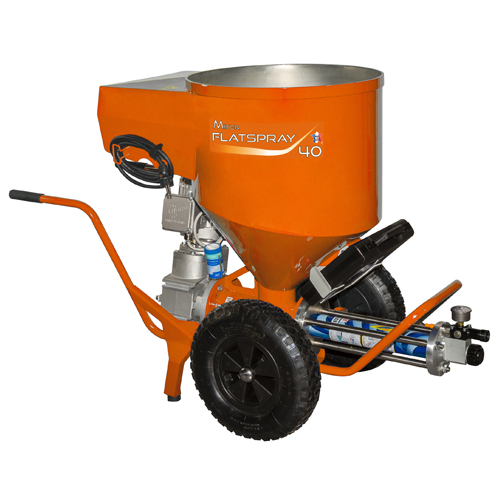

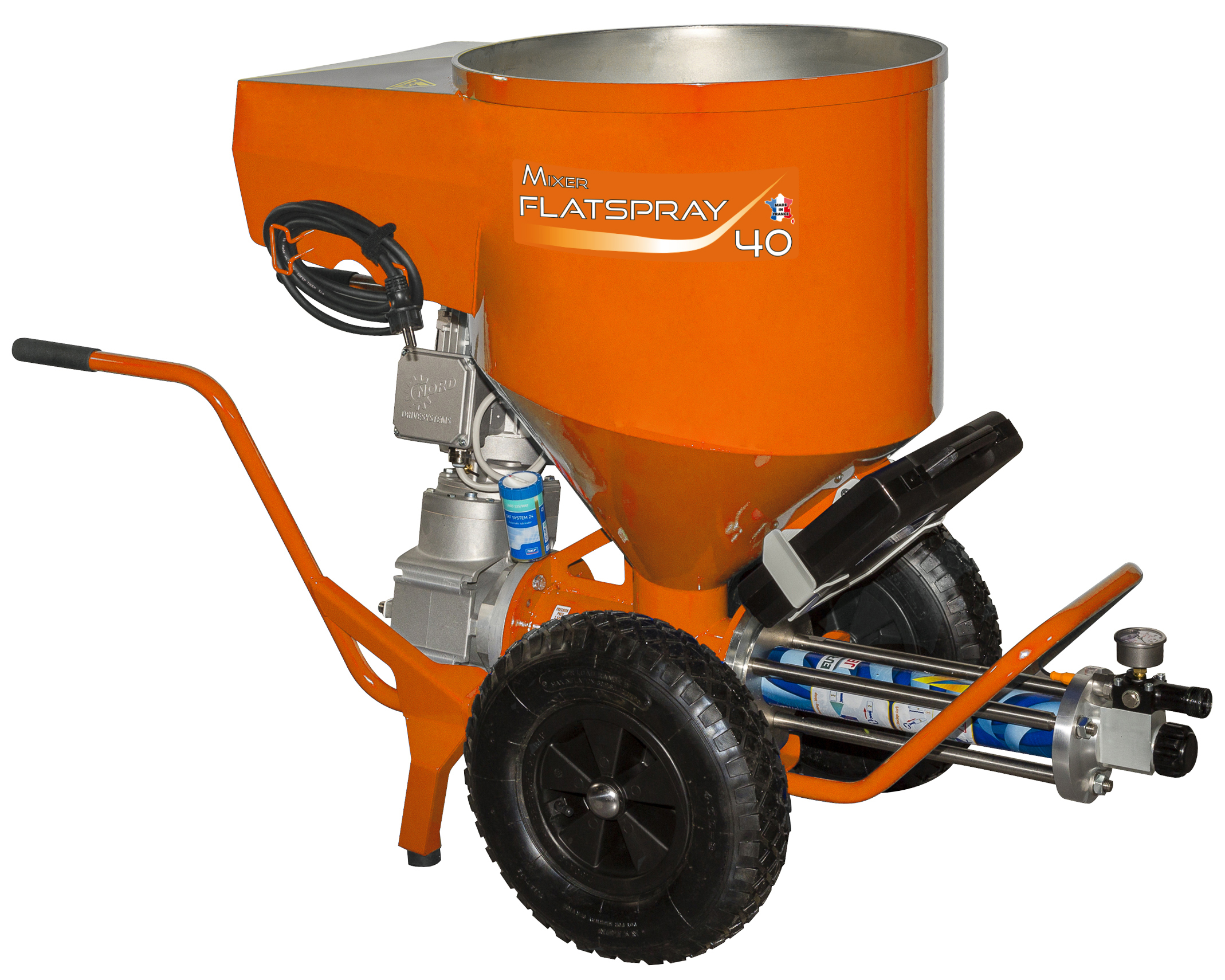

MIXER FLATSPRAY 40 is a machine for applying thin films of filler.
It uses a valveless pump, is easy to maintain, with a round stainless steel tank for easy cleaning, a Ø35 mm drain valve. It is equipped with large diameter, flat profile, inflatable tyres for better stability.
The machine is equipped with a ball nose pump with integrated filter. Starting is wireless when the gun is opened.
The quick-release hoses make it easier to use on site.
It uses a valveless pump, is easy to maintain, with a round stainless steel tank for easy cleaning, a Ø35 mm drain valve. It is equipped with large diameter, flat profile, inflatable tyres for better stability.
The machine is equipped with a ball nose pump with integrated filter. Starting is wireless when the gun is opened.
The quick-release hoses make it easier to use on site.
Applications
All types of ready-to-use film plasters: smoothing coating, raking coating, casing coating, bituminous coating ...
Can also make droplet type applications with an optional kit and a compressor.
Can also make droplet type applications with an optional kit and a compressor.
Technical characteristics
Maximum working pressure
130 bar
Maximum product flow-rate
9 L/min
Electric motor
3,3 kW
Power
400 V Tri / 50 & 60 Hz
Type of pump
volumetric screw
Pump
JET 5
Tank capacity
110 L
Max tip size
0,065"
Dimensions (L x w x h)
143 x 65 x 97 cm
Weight
110 kg
Noise level
91 Lwa
Delivered with
- a Ø19 x 30 m hose
- a Ø16 x 2,5 m easy handling flexible hose
- a wireless remote control
- a Jetpro spray-gun with tip holder
- a TT3 443 tip
- a toolbox containing:
- a Ø16 x 2,5 m easy handling flexible hose
- a wireless remote control
- a Jetpro spray-gun with tip holder
- a TT3 443 tip
- a toolbox containing:
- two spanners 17 and 22
- a multigrip plier
- three Allen keys Ø2, 5 and 8
- two cleaning balls and a cleaning brush
- 1 L of storage liquid
Réf. 3B03204100
Cat. C10
EAN : 8099998149121
Public price
10 390,00 € pre-tax
Description
MIXER FLATSPRAY 40 is a machine for applying thin films of filler.
It uses a valveless pump, is easy to maintain, with a round stainless steel tank for easy cleaning, a Ø35 mm drain valve. It is equipped with large diameter, flat profile, inflatable tyres for better stability.
The machine is equipped with a ball nose pump with integrated filter. Starting is wireless when the gun is opened.
The quick-release hoses make it easier to use on site.
It uses a valveless pump, is easy to maintain, with a round stainless steel tank for easy cleaning, a Ø35 mm drain valve. It is equipped with large diameter, flat profile, inflatable tyres for better stability.
The machine is equipped with a ball nose pump with integrated filter. Starting is wireless when the gun is opened.
The quick-release hoses make it easier to use on site.
Applications
All types of ready-to-use film plasters: smoothing coating, raking coating, casing coating, bituminous coating ...
Can also make droplet type applications with an optional kit and a compressor.
Can also make droplet type applications with an optional kit and a compressor.
Technical characteristics
Maximum working pressure
130 bar
Maximum product flow-rate
9 L/min
Electric motor
3,3 kW
Power
400 V Tri / 50 & 60 Hz
Type of pump
volumetric screw
Pump
JET 5
Tank capacity
110 L
Max tip size
0,065"
Dimensions (L x w x h)
143 x 65 x 97 cm
Weight
110 kg
Noise level
91 Lwa
Delivered with
- a Ø19 x 30 m hose
- a Ø16 x 2,5 m easy handling flexible hose
- a wireless remote control
- a Jetpro spray-gun with tip holder
- a TT3 443 tip
- a toolbox containing:
- a Ø16 x 2,5 m easy handling flexible hose
- a wireless remote control
- a Jetpro spray-gun with tip holder
- a TT3 443 tip
- a toolbox containing:
- two spanners 17 and 22
- a multigrip plier
- three Allen keys Ø2, 5 and 8
- two cleaning balls and a cleaning brush
- 1 L of storage liquid
