Description

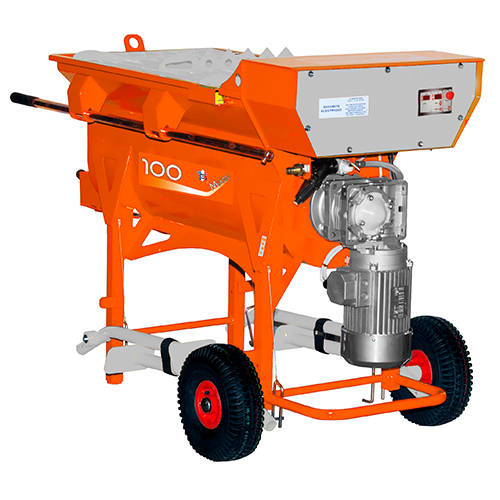

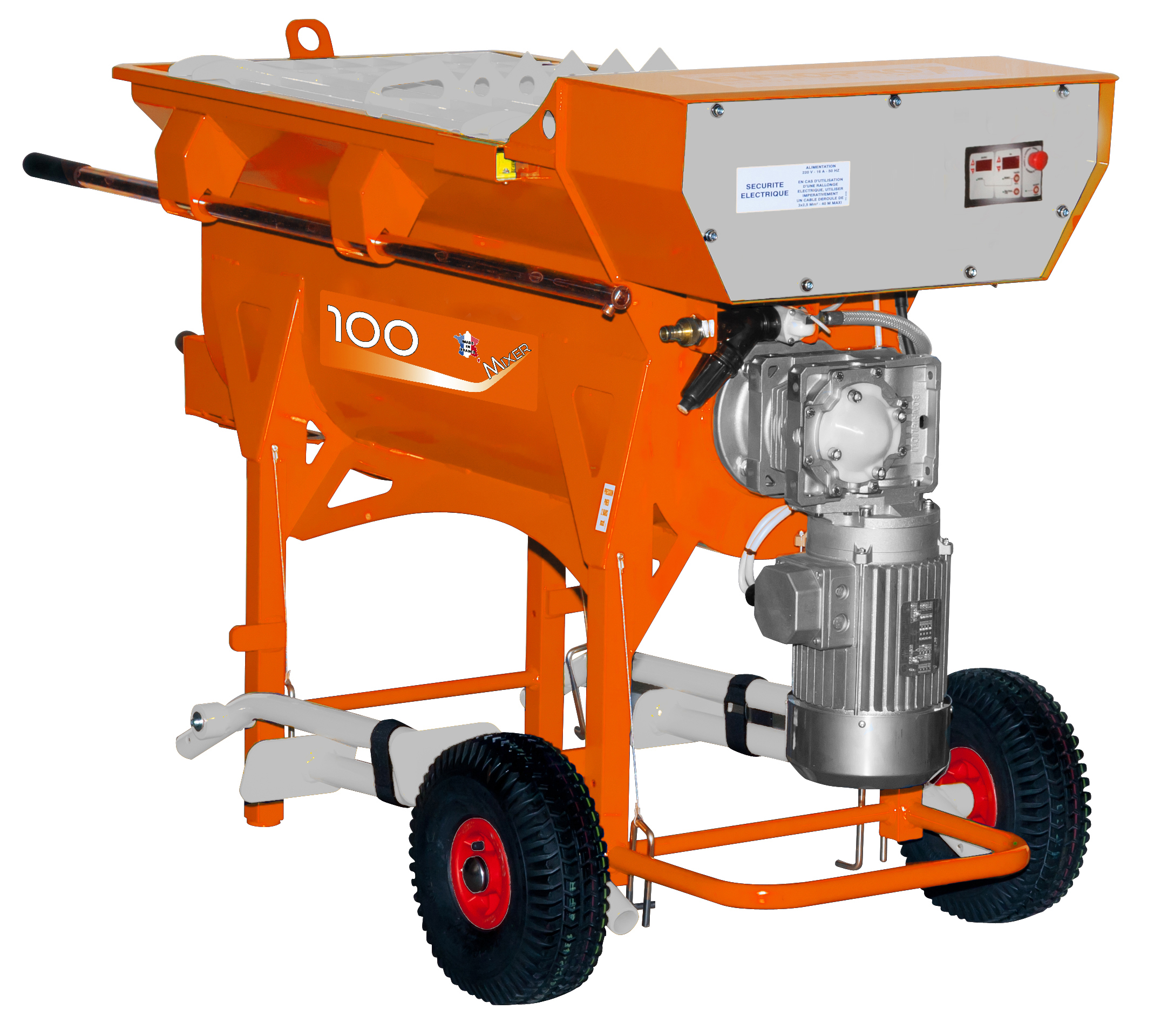

The Mixer 100 is fitted with a twin spiral blade on a horizontal shaft allowing for the fast and homogeneous mixing of all types of powder products.
Mixer fitted with a speed regulator and forward/backward running function, with electronic water dosage.
2021 news: the mixer is now equipped with a stainless steel tank
Mixer fitted with a speed regulator and forward/backward running function, with electronic water dosage.
2021 news: the mixer is now equipped with a stainless steel tank
Applications
- All types of powder products
- All bi-component products
- Sand or lime to mix with water
- All bi-component products
- Sand or lime to mix with water
Technical characteristics
Tank capacity
100 L
Power supply
230 V / 50 - 60 Hz
Current
6.5 A
Motor power
2.2 kW
Forward/backward rotational speed
36 to 84 rpm
Dimensions in low position (l x w x h)
129 x 74 x 84 cm
Drainage height in low position
41 cm
Dimensions in high position (l x w x h)
129 x 74 x 126 cm
Drainage height in high position
72 cm
Weight
107 kg
Réf. 3B03603000
Cat. C9
EAN : 8099998147684
Public price
5 990,00 € pre-tax
Description
The Mixer 100 is fitted with a twin spiral blade on a horizontal shaft allowing for the fast and homogeneous mixing of all types of powder products.
Mixer fitted with a speed regulator and forward/backward running function, with electronic water dosage.
2021 news: the mixer is now equipped with a stainless steel tank
Mixer fitted with a speed regulator and forward/backward running function, with electronic water dosage.
2021 news: the mixer is now equipped with a stainless steel tank
Applications
- All types of powder products
- All bi-component products
- Sand or lime to mix with water
- All bi-component products
- Sand or lime to mix with water
Technical characteristics
Tank capacity
100 L
Power supply
230 V / 50 - 60 Hz
Current
6.5 A
Motor power
2.2 kW
Forward/backward rotational speed
36 to 84 rpm
Dimensions in low position (l x w x h)
129 x 74 x 84 cm
Drainage height in low position
41 cm
Dimensions in high position (l x w x h)
129 x 74 x 126 cm
Drainage height in high position
72 cm
Weight
107 kg
