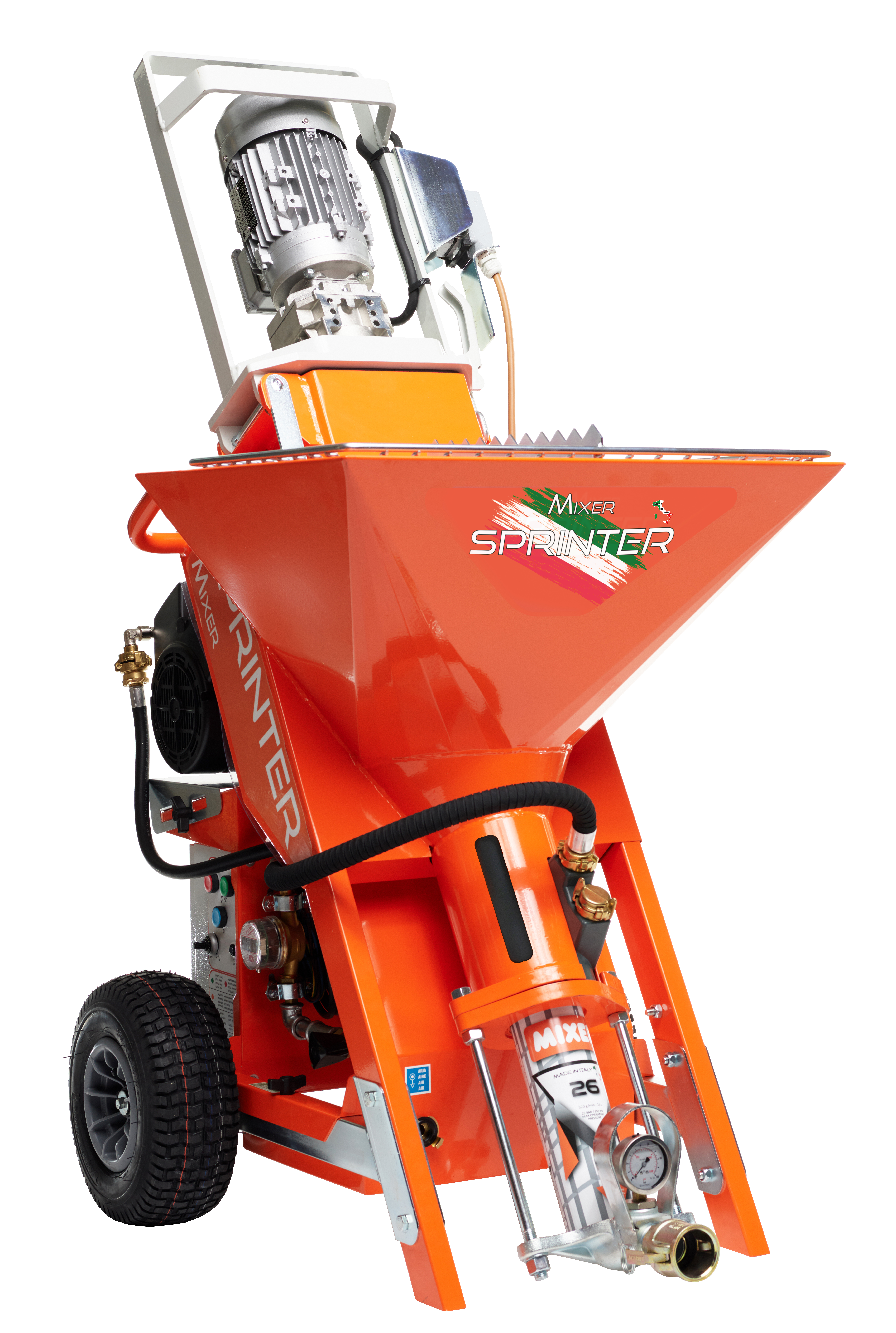

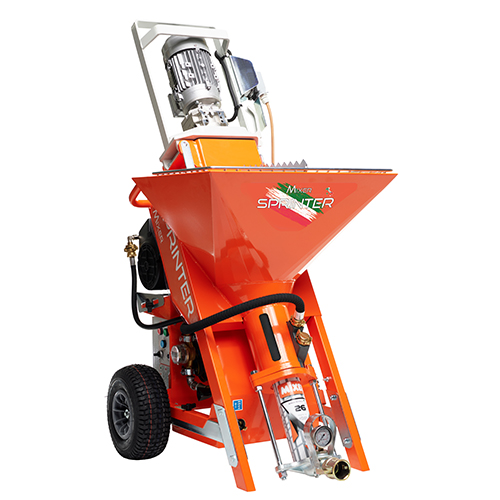

MIXER SPRINTER E.W.I. continuous mixing machine


Product datasheet
Options
Advice & Documents
Exploded views
Product datasheet
Description
Compact continuous mixing pump, with reduced weight and size, easy to disassemble into 4 sections for simplified transport.
2021 news: new electrical panel
Applications
Ideal for a wide range of powder products, lime-, plaster- and cement-based surface coatings. This pump is also ideal for filling joints, resurfacing works, applying adhesives, interior and exterior finishes.
Technical characteristics
Tank capacity
80 L
Power supply
230 V - 50 Hz
Motor thermal protection
yes
Variable speed
yes
Water pressure booster
yes
Flow meter
Digital display
Water shortage safety device
yes
Rotor/stator kit
MIXER 13
Spraying flow rate
8 to 26 L/min*
Max. spraying distance
40 metres*
Loading height
102 cm
Dimensions (l x w x h)
98 x 72 x 153 cm
Weight
145 kg
Compressor
8021022700
Delivered with
- Anti-seize spray (cod. 3M07701000)
- Cleaning shaft (cod. 7001008000)
- 19×26 40 LM water hose with GEKA coupling (cod. 8004001000)
- 20 LM neoprene 3×4 power cord with plug (cod. 8007005003)

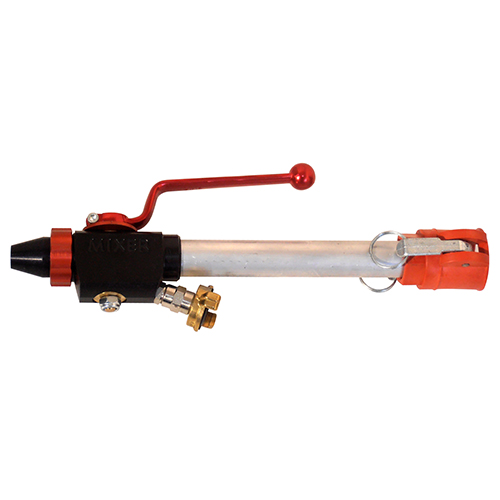

- Mixer spray lance for glue (cod. 8010006200)
- Adapters + GEKA coupling (cod. 8028001006)
- Releasing tool (cod. 8030051000)
- Maintenance kit (cod. 8029000000)
- 13×19 21 LM air hose with GEKA coupling (cod. 8003001003)
- one 20 LM Strike hose (cod. 8002004001)
- 22 LM finishing spray lance cord (cod. 8007014550)
(*) depending on the characteristics of the product used, the stator, the rotor, the diameter and length of the hose, the spraying height and the ambient temperature.
Réf. 910000100A
Cat. C1
EAN : 8099998071460

 Public price
10 219,00 € pre-tax
Description
Compact continuous mixing pump, with reduced weight and size, easy to disassemble into 4 sections for simplified transport.
2021 news: new electrical panel
Applications
Ideal for a wide range of powder products, lime-, plaster- and cement-based surface coatings. This pump is also ideal for filling joints, resurfacing works, applying adhesives, interior and exterior finishes.
Technical characteristics
Tank capacity
80 L
Power supply
230 V - 50 Hz
Motor thermal protection
yes
Variable speed
yes
Water pressure booster
yes
Flow meter
Digital display
Water shortage safety device
yes
Rotor/stator kit
MIXER 13
Spraying flow rate
8 to 26 L/min*
Max. spraying distance
40 metres*
Loading height
102 cm
Dimensions (l x w x h)
98 x 72 x 153 cm
Weight
145 kg
Compressor
8021022700
Delivered with
- Anti-seize spray (cod. 3M07701000)
- Cleaning shaft (cod. 7001008000)
- 19×26 40 LM water hose with GEKA coupling (cod. 8004001000)
- 20 LM neoprene 3×4 power cord with plug (cod. 8007005003)
- Mixer spray lance for glue (cod. 8010006200)
- Adapters + GEKA coupling (cod. 8028001006)
- Releasing tool (cod. 8030051000)
- Maintenance kit (cod. 8029000000)
- 13×19 21 LM air hose with GEKA coupling (cod. 8003001003)
- one 20 LM Strike hose (cod. 8002004001)
- 22 LM finishing spray lance cord (cod. 8007014550)
(*) depending on the characteristics of the product used, the stator, the rotor, the diameter and length of the hose, the spraying height and the ambient temperature.

Product datasheet
Options
Advice & Documents
Exploded views
Product datasheet
Options
Advice & Documents
Exploded views
Product datasheet
Options
Advice & Documents
Exploded views
Exploded views

General view

Mixing group

Water group

Air group

Electric panel - vers. 2021

Electric panel (until 12/2020)
