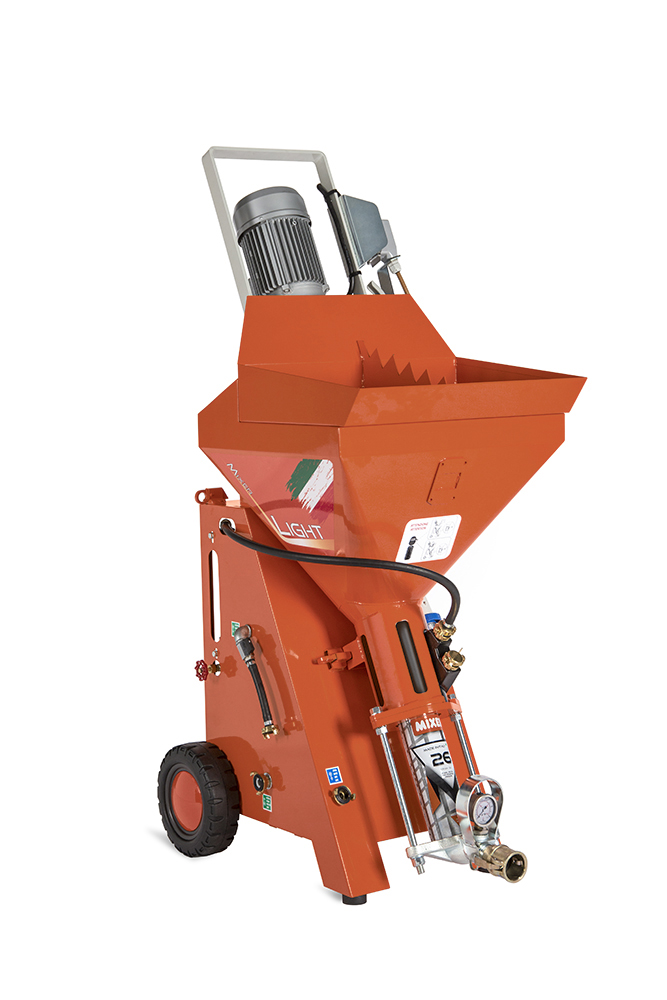

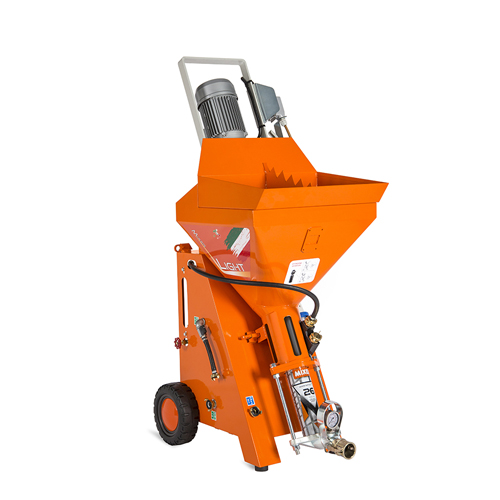

MIXER LIGHT plaster continuous mixing machine - 3 kW


Product datasheet
Options
Advice & Documents
Exploded views
Product datasheet
Description
Extremely compact continuous mixing pump with reduced weight and size. Easy to disassemble into 3 sections to ease transport.

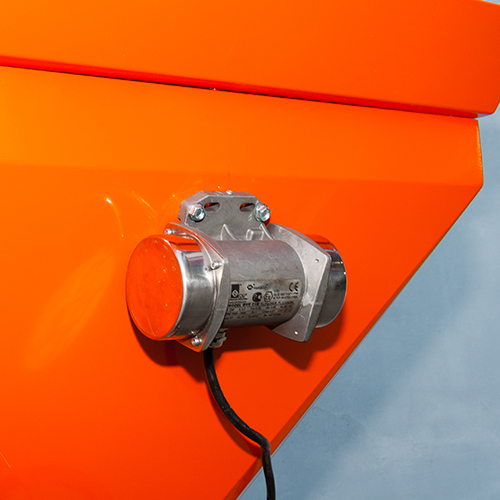

OPTIONAL: Vibrator Kit (Ref. 8100001350
Applications

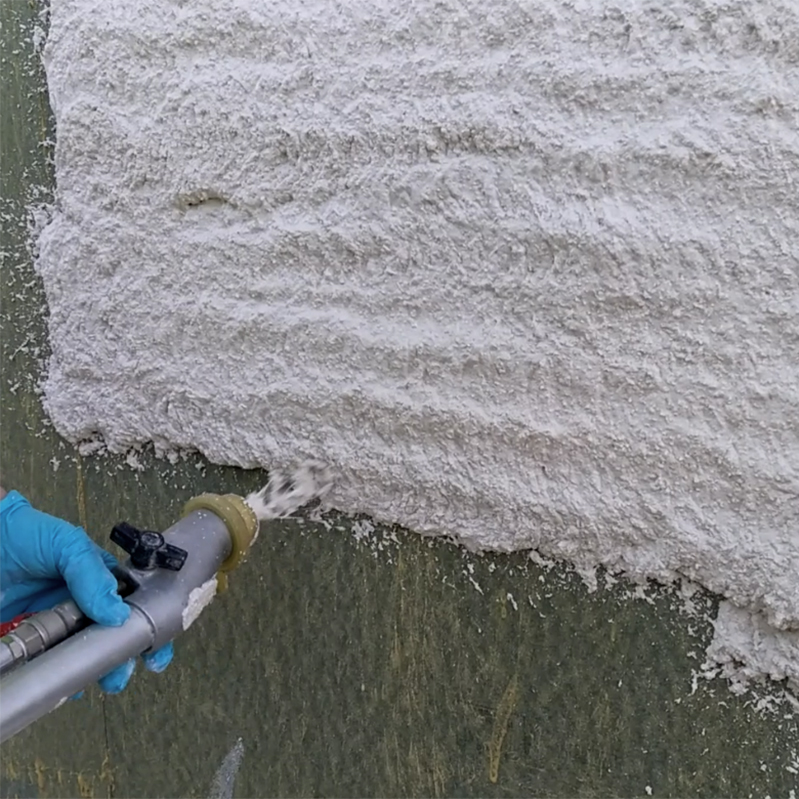

It can spray slurry products such as plaster-, lime- and cement-based surface coatings, etc.
This pump is also ideal for filling joints, applying adhesives, resurfacing products, and interior and exterior finishes.
Technical characteristics
Tank capacity
70 L
Power supply
230 V - 50 Hz
Thermal protection
yes
Gear motor for mixing chamber
3 kW
Variable speed
yes
Built-in compressor
8021022600
Water pump
yes
Flow meter
yes
Water shortage safety device
yes
Spraying flow rate
8 to 25 L/min*
Max. distance
40 metres*
Loading height
102 cm
Dimensions (l x w x h)
100 x 76 x 159 cm
Machine weight
130 kg
Delivered with
- Anti-seize spray (cod. 3M07701000)
– Cleaning shaft (cod. 7001008000)
– 25×37 15 LM spray hose with couplings (cod. 8002001001)
– 13×19 16 LM air hose with GEKA coupling (cod. 8003001000)
– 19 x 26 40 LM water hose with GEKA coupling
(cod. 8004001000) – 20 LM neoprene 3×4 power cord with plug
(cod. 8007005003) – MIXER complete aluminum mortar lance with Ø14 mm nozzle 80 Shore (cod. 8010003005)
– Adapter + GEKA coupling
(cod. 8028001001) – T – handle wrench
(cod. 8030051000) – Tool bag (cod. 8029000000)
(*) depending on the characteristics of the product used, the stator, the rotor, the diameter and length of the hose, the spraying height and the ambient temperature.
Réf. 915000700A
Cat. C1
EAN : 8099998143792

 Public price
8 350,00 € pre-tax
Description
Extremely compact continuous mixing pump with reduced weight and size. Easy to disassemble into 3 sections to ease transport.
OPTIONAL: Vibrator Kit (Ref. 8100001350
Applications
It can spray slurry products such as plaster-, lime- and cement-based surface coatings, etc.
This pump is also ideal for filling joints, applying adhesives, resurfacing products, and interior and exterior finishes.
Technical characteristics
Tank capacity
70 L
Power supply
230 V - 50 Hz
Thermal protection
yes
Gear motor for mixing chamber
3 kW
Variable speed
yes
Built-in compressor
8021022600
Water pump
yes
Flow meter
yes
Water shortage safety device
yes
Spraying flow rate
8 to 25 L/min*
Max. distance
40 metres*
Loading height
102 cm
Dimensions (l x w x h)
100 x 76 x 159 cm
Machine weight
130 kg
Delivered with
- Anti-seize spray (cod. 3M07701000)
– Cleaning shaft (cod. 7001008000)
– 25×37 15 LM spray hose with couplings (cod. 8002001001)
– 13×19 16 LM air hose with GEKA coupling (cod. 8003001000)
– 19 x 26 40 LM water hose with GEKA coupling
(cod. 8004001000) – 20 LM neoprene 3×4 power cord with plug
(cod. 8007005003) – MIXER complete aluminum mortar lance with Ø14 mm nozzle 80 Shore (cod. 8010003005)
– Adapter + GEKA coupling
(cod. 8028001001) – T – handle wrench
(cod. 8030051000) – Tool bag (cod. 8029000000)
(*) depending on the characteristics of the product used, the stator, the rotor, the diameter and length of the hose, the spraying height and the ambient temperature.
