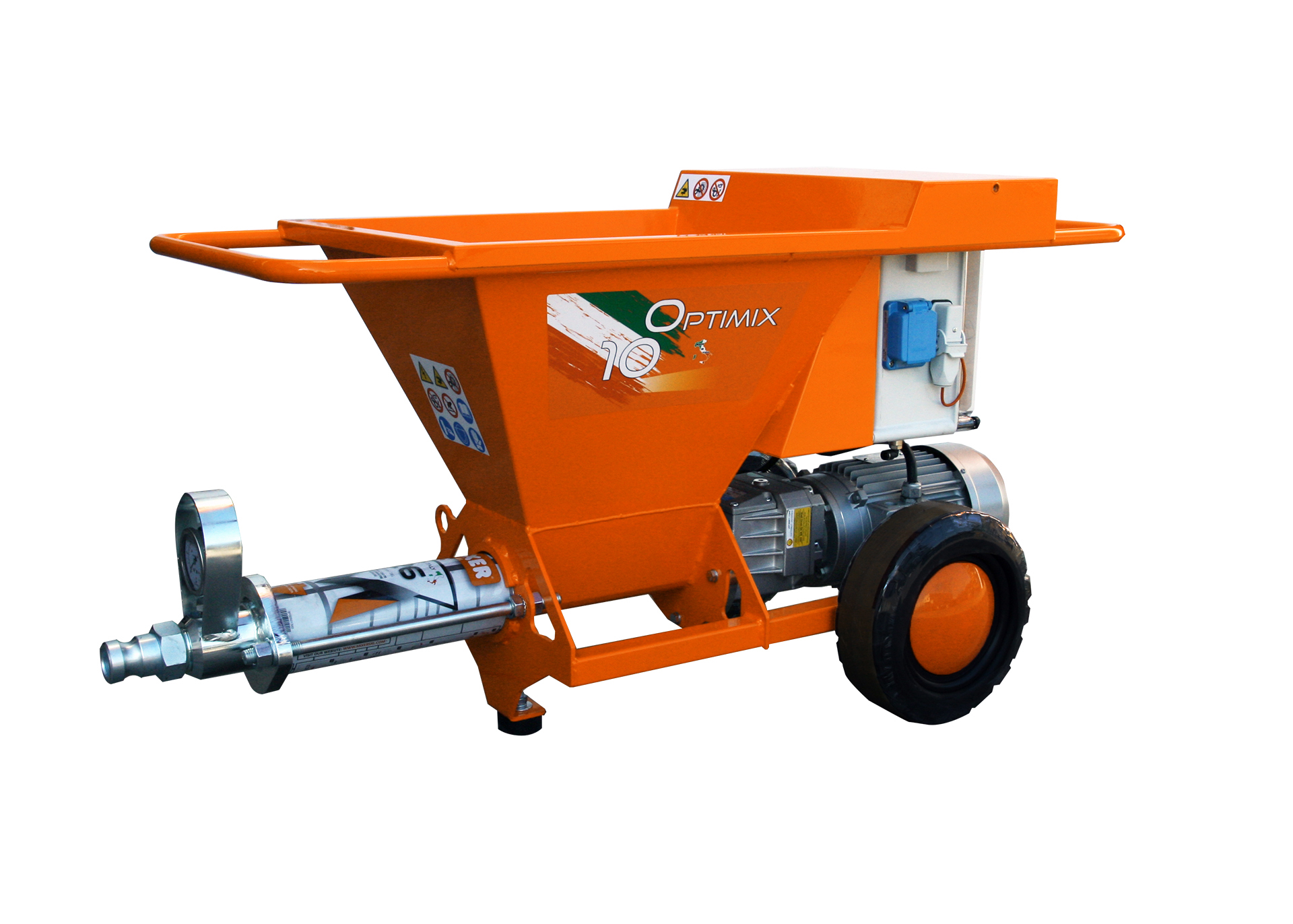

OPTIMIX 10 spraying machine for adhesive


Product datasheet
Options
Advice & Documents
Exploded views
Product datasheet
Description
Compact and versatile machine.

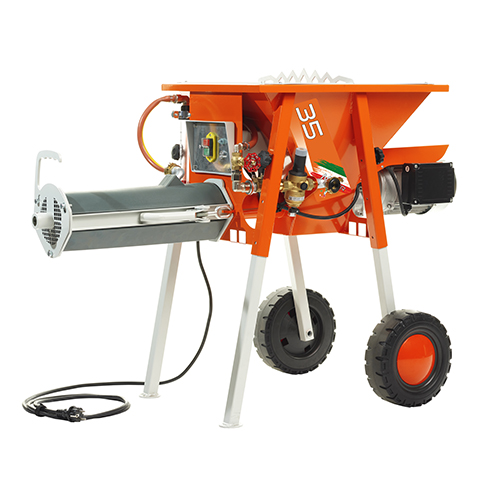

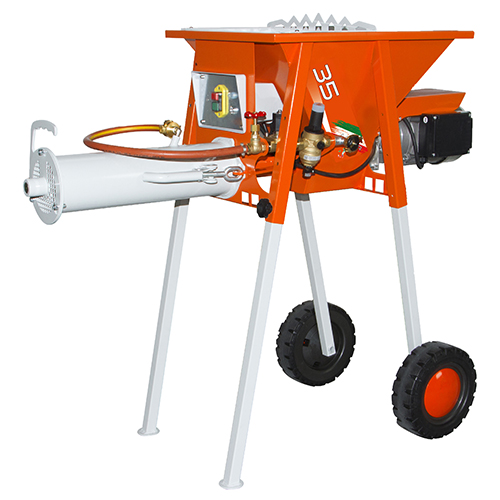

When used together with the Mixer 35, it becomes a comprehensive system ideal for all small-scale rendering works.
Applications
Ideal for mortar, adhesives, joints and finishes.
Technical characteristics
Tank capacity
35 L
Power supply
230 V 50 Hz
Motor power
2.2 kW
Spraying pressure
0 to 20 bar
Compressor
optional
Rotor/stator kit
MIXER 26
Spraying flow rate
8 to 26 L/min*
Max. grain size
3 mm
Max. spraying distance
40 metres*
Loading height
60 cm
Dimensions (l x w x h)
90 x 45 x 62 cm
Weight
55 kg
Delivered with

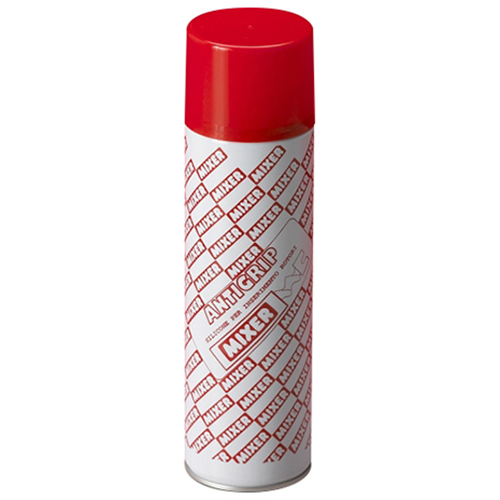

- Anti-seize spray (cod. 3M07701000)
- 25×37 15 LM spraying hoses with couplings (cod. 8002001001)
- Mixer lance for glue (cod. 8010006200)
- Glue lance 17 ML cable (cod. 8007014500)
- Maintenance kit (cod. 8029000004)

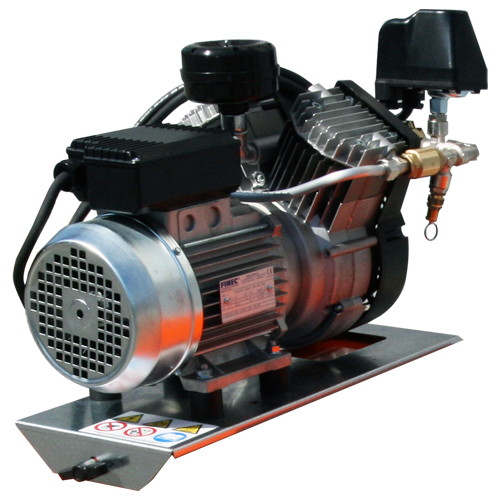

OPTIONAL: Air unit Mix’air (Ref: 3B02810000)
(*) depending on the characteristics of the product used, the stator, the rotor, the diameter and length of the hose, the spraying height and the ambient temperature.
Réf. 9110006000
Cat. C2
EAN : 8099998138170

 Public price
4 790,00 € pre-tax
Description
Compact and versatile machine.
When used together with the Mixer 35, it becomes a comprehensive system ideal for all small-scale rendering works.
Applications
Ideal for mortar, adhesives, joints and finishes.
Technical characteristics
Tank capacity
35 L
Power supply
230 V 50 Hz
Motor power
2.2 kW
Spraying pressure
0 to 20 bar
Compressor
optional
Rotor/stator kit
MIXER 26
Spraying flow rate
8 to 26 L/min*
Max. grain size
3 mm
Max. spraying distance
40 metres*
Loading height
60 cm
Dimensions (l x w x h)
90 x 45 x 62 cm
Weight
55 kg
Delivered with
- Anti-seize spray (cod. 3M07701000)
- 25×37 15 LM spraying hoses with couplings (cod. 8002001001)
- Mixer lance for glue (cod. 8010006200)
- Glue lance 17 ML cable (cod. 8007014500)
- Maintenance kit (cod. 8029000004)
OPTIONAL: Air unit Mix’air (Ref: 3B02810000)
(*) depending on the characteristics of the product used, the stator, the rotor, the diameter and length of the hose, the spraying height and the ambient temperature.

Product datasheet
Options
Advice & Documents
Exploded views
Product datasheet
Options
Advice & Documents
Exploded views
Product datasheet
Options
Advice & Documents
Exploded views
Exploded views

General view

Mixing group

Output flange

Electric panel

Compressor
