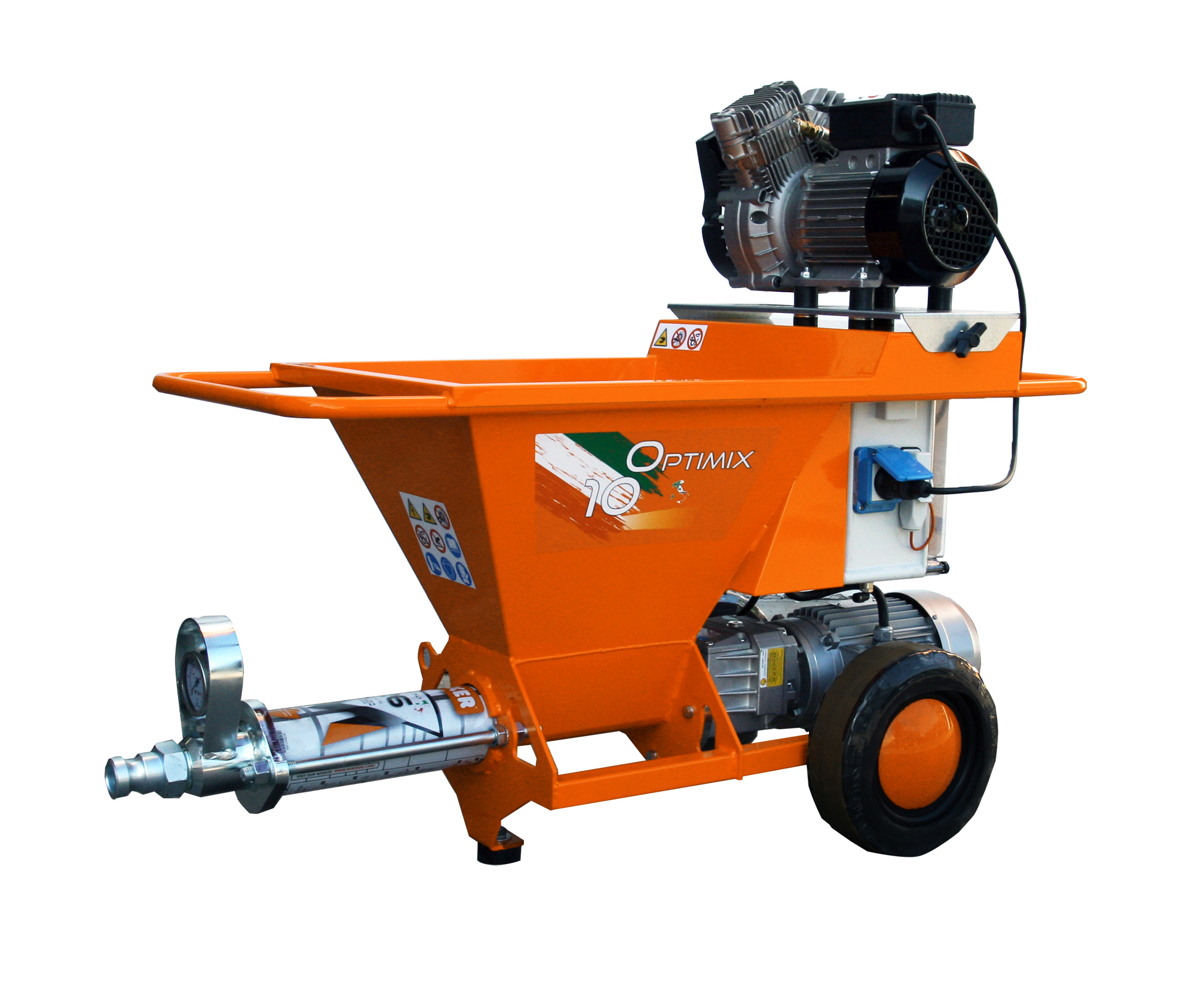

OPTIMIX 10 spraying machine for mortar
Product datasheet
Options
Advice & Documents
Exploded viewsProduct datasheet
Description
Compact and versatile machine.
When used together with the Mixer 35, it becomes a comprehensive system ideal for all small-scale rendering works.
When used together with the Mixer 35, it becomes a comprehensive system ideal for all small-scale rendering works.
Applications
Ideal for mortar, adhesives, joints and finishes.
Technical characteristics
Tank capacity
35 L
Power supply
230 V - 50 Hz
Motor power
2.2 kW
Spraying pressure
0 to 20 bar
Compressor
yes
Rotor/stator kit
MIXER 26
Spraying flow rate
8 to 26 L/min*
Max. grain size
3 mm
Max. spraying distance
40 metres*
Loading height
60 cm
Dimensions (l x w x h)
90 x 45 x 62 cm
Weight
55 kg
Delivered with
- Anti-seize spray (cod. 3M07701000)
- 25×37 15 LM spray hose with couplings (cod. 8002001001)
- 13×19 16 LM air hose with GEKA coupling (cod.8003001000)

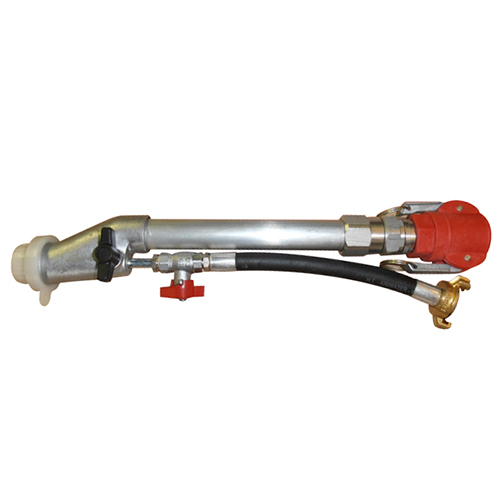

– MIXER complete aluminum mortar lance with Ø14 mm nozzle 80 Shore (cod. 8010003005)

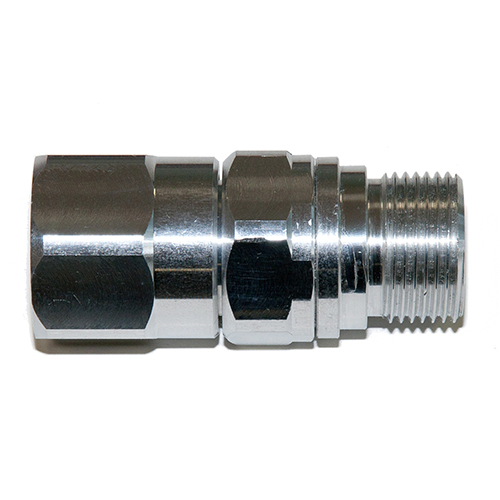

- Adapter + GEKA coupling (cod. 8028001001)
- Tool bag (cod. 8029000004)
- Compressor unit (cod.8021022800)
- 25×37 15 LM spray hose with couplings (cod. 8002001001)
- 13×19 16 LM air hose with GEKA coupling (cod.8003001000)
– MIXER complete aluminum mortar lance with Ø14 mm nozzle 80 Shore (cod. 8010003005)
- Adapter + GEKA coupling (cod. 8028001001)
- Tool bag (cod. 8029000004)
- Compressor unit (cod.8021022800)
Réf. 9110007000
Cat. C2
EAN : 8099998229526
Public price
5 450,00 € pre-tax
Description
Compact and versatile machine.
When used together with the Mixer 35, it becomes a comprehensive system ideal for all small-scale rendering works.
When used together with the Mixer 35, it becomes a comprehensive system ideal for all small-scale rendering works.
Applications
Ideal for mortar, adhesives, joints and finishes.
Technical characteristics
Tank capacity
35 L
Power supply
230 V - 50 Hz
Motor power
2.2 kW
Spraying pressure
0 to 20 bar
Compressor
yes
Rotor/stator kit
MIXER 26
Spraying flow rate
8 to 26 L/min*
Max. grain size
3 mm
Max. spraying distance
40 metres*
Loading height
60 cm
Dimensions (l x w x h)
90 x 45 x 62 cm
Weight
55 kg
Delivered with
- Anti-seize spray (cod. 3M07701000)
- 25×37 15 LM spray hose with couplings (cod. 8002001001)
- 13×19 16 LM air hose with GEKA coupling (cod.8003001000)
– MIXER complete aluminum mortar lance with Ø14 mm nozzle 80 Shore (cod. 8010003005)
- Adapter + GEKA coupling (cod. 8028001001)
- Tool bag (cod. 8029000004)
- Compressor unit (cod.8021022800)
- 25×37 15 LM spray hose with couplings (cod. 8002001001)
- 13×19 16 LM air hose with GEKA coupling (cod.8003001000)
– MIXER complete aluminum mortar lance with Ø14 mm nozzle 80 Shore (cod. 8010003005)
- Adapter + GEKA coupling (cod. 8028001001)
- Tool bag (cod. 8029000004)
- Compressor unit (cod.8021022800)
