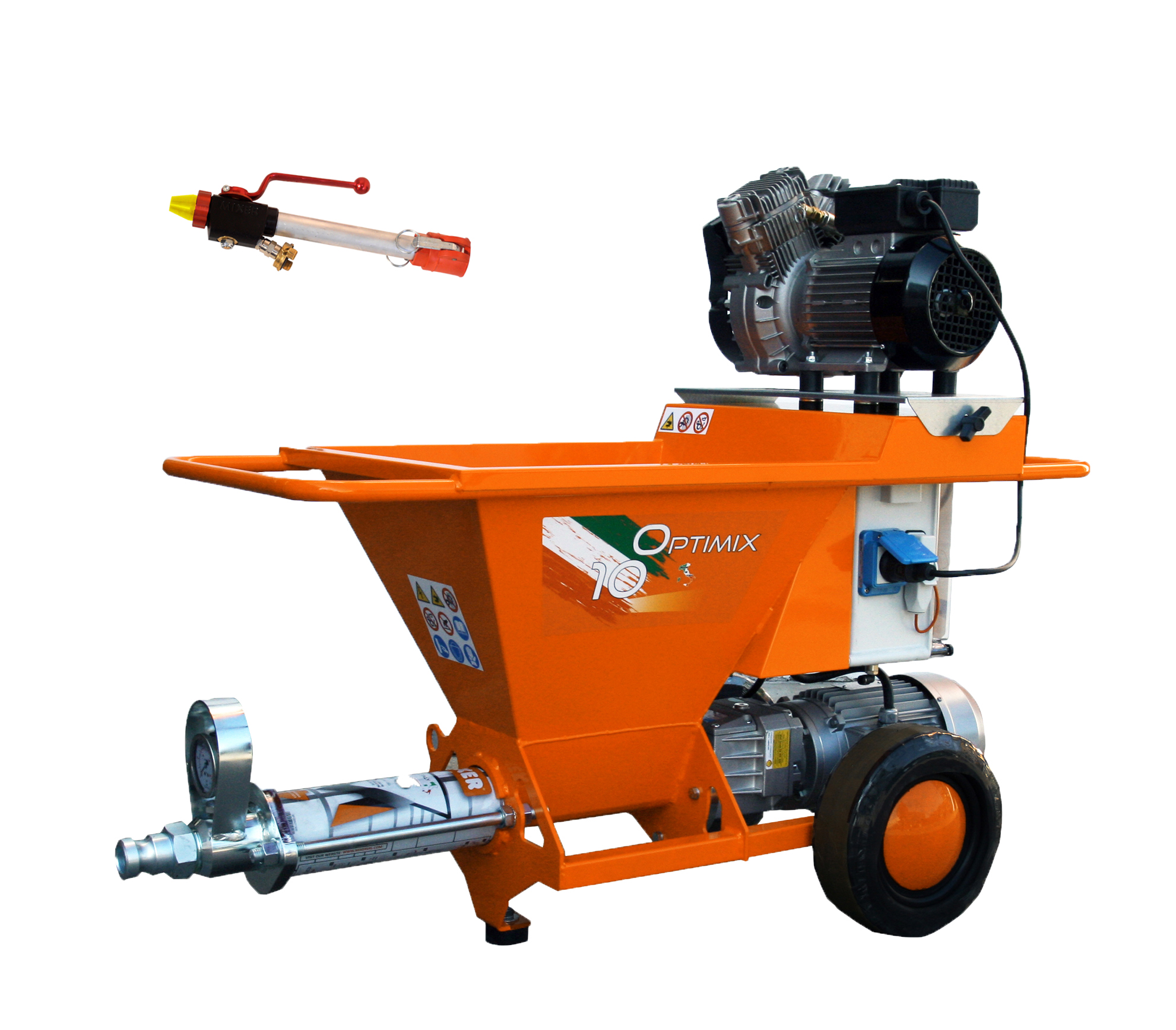

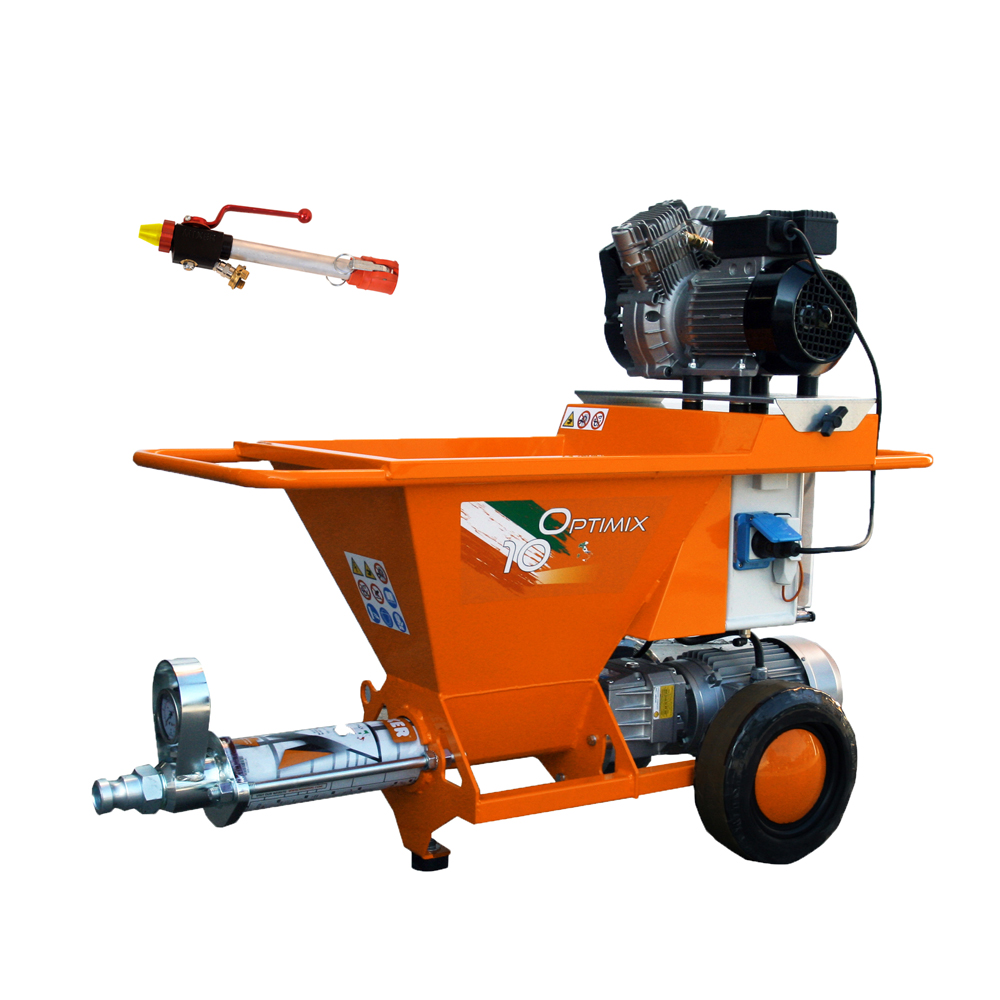

OPTIMIX 10 spraying machine for coatings


Product datasheet
Options
Advice & Documents
Product datasheet
Description
Compact and versatile machine.
It is equipped with compressor and Mixer lance for Coatings.
Applications
Ideal for applying coatings.
Technical characteristics
Tank capacity
35 L
Power supply
230 V - 50 Hz
Motor power
3 kW
Spraying pressure
0 to 20 bar
Compressor
yes
Spraying flow rate
8 to 26 L/min*
Max. grain size
3 mm
Max. spraying distance
40 metres*
Loading height
60 cm
Dimensions (l x w x h)
90 x 45 x 62 cm
Weight
55 kg
Delivered with
- Compressor group OPTIMIX 10 with support (cod. 8021022800)
- Hose EPDM 13 x 19 with Geka couplings (cod. 3F00700805)
- Antigrip (cod. 3M07701000)
- 25×37 product hose - 15 LM male/male (cod. 8002001001)
- 27×37 product hose 5 ML with couplings male/female (cod. 8002003000)
- Air hose 13 x 19 - 16 lm with Geka couplings (cod. 8003001000)
- Air hose 13 x 19 - 5 lm with Geka couplings (cod. 8003001002)
- Finishing lance 22 ML cable (cod. 8007014550)

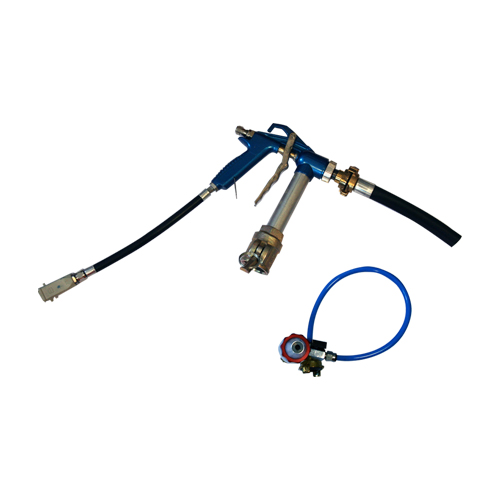

- Mixer lance for coatings (cod. 8010006300)
- OPTIMIX 10 tool bag (cod. 8029000004)
(*) depending on the characteristics of the product used, the stator, the rotor, the diameter and length of the hose, the spraying height and the ambient temperature.
Réf. 9110008000
Cat. C2
EAN : 8099998247650

 Public price
6 528,00 € pre-tax
Description
Compact and versatile machine.
It is equipped with compressor and Mixer lance for Coatings.
Applications
Ideal for applying coatings.
Technical characteristics
Tank capacity
35 L
Power supply
230 V - 50 Hz
Motor power
3 kW
Spraying pressure
0 to 20 bar
Compressor
yes
Spraying flow rate
8 to 26 L/min*
Max. grain size
3 mm
Max. spraying distance
40 metres*
Loading height
60 cm
Dimensions (l x w x h)
90 x 45 x 62 cm
Weight
55 kg
Delivered with
- Compressor group OPTIMIX 10 with support (cod. 8021022800)
- Hose EPDM 13 x 19 with Geka couplings (cod. 3F00700805)
- Antigrip (cod. 3M07701000)
- 25×37 product hose - 15 LM male/male (cod. 8002001001)
- 27×37 product hose 5 ML with couplings male/female (cod. 8002003000)
- Air hose 13 x 19 - 16 lm with Geka couplings (cod. 8003001000)
- Air hose 13 x 19 - 5 lm with Geka couplings (cod. 8003001002)
- Finishing lance 22 ML cable (cod. 8007014550)
- Mixer lance for coatings (cod. 8010006300)
- OPTIMIX 10 tool bag (cod. 8029000004)
(*) depending on the characteristics of the product used, the stator, the rotor, the diameter and length of the hose, the spraying height and the ambient temperature.
