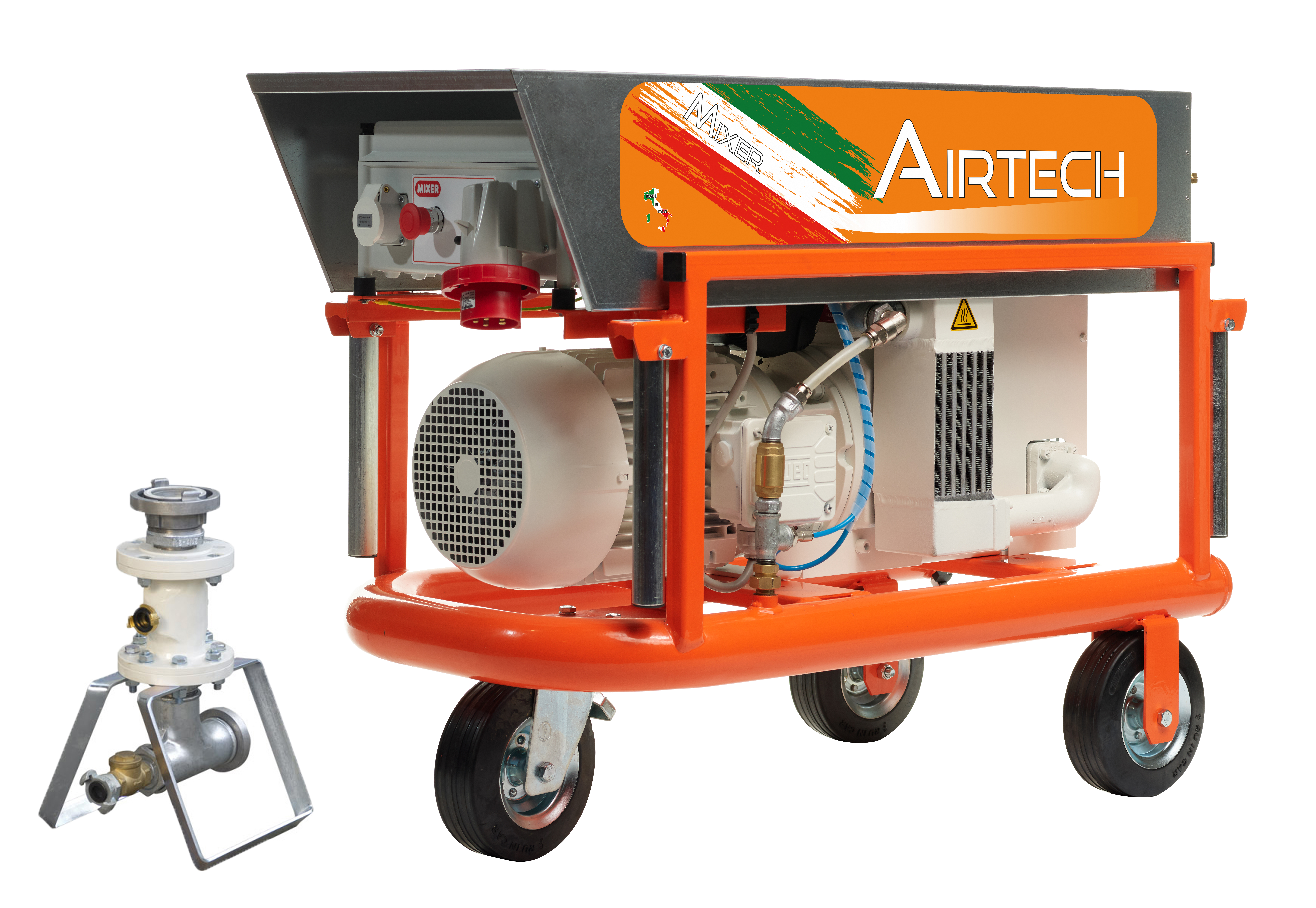

MIXER AIRTECH STANDARD powder conveying group - Type 140 RIETSCHLE
Product datasheet
Advice & Documents
Exploded viewsProduct datasheet
Description
The Mixer Airtech silo compressor has the control panel user-friendly.
The compressor is fitted with an automated hose cleaning system in the event of loss of voltage.
Equipped with Elmo Rietschle C series, with innovative claw technology.
The compressor is fitted with an automated hose cleaning system in the event of loss of voltage.
Equipped with Elmo Rietschle C series, with innovative claw technology.
Applications
Ideal for pneumatically conveying pre-mixed dry products contained in pressurised silos.
Technical characteristics
Power supply
400 V - 50 Hz
Current
17 A
Power
7,5 kW
Spraying flow rate
140 m3/h
Spraying distance
140 m*
Dimensions (l x w x h)
110 x 55 x 84 cm
Compressor weight
245 kg
Delivered with
– PFG 86/42TI sensor (cod. 3C03800201)
– Two 25 LM polyurethane spiral hoses with Storz coupling (cod. 3F00700450)
– 19×30 4 LM EPDM hose with GEKA coupling (cod. 3F00700802)
– 13×19 4 LM EPDM hose with GEKA rotating coupling (cod. 3F00700805)
– 25×33 4 LM EPDM hose with couplings (cod. 3F00700809)
– 2 Storz wrenches (cod. 4910002000)
– 4×2.5 50 LM power cord with plug (cod. 8007001000)
– 3×1.5 50 LM sensor wire with plug (cod. 8007004001)
– Monofilter cover (cod. 800804100A)
- AIRTECH PRESS conveyor assembly(cod. 8021031000)
– Two 25 LM polyurethane spiral hoses with Storz coupling (cod. 3F00700450)
– 19×30 4 LM EPDM hose with GEKA coupling (cod. 3F00700802)
– 13×19 4 LM EPDM hose with GEKA rotating coupling (cod. 3F00700805)
– 25×33 4 LM EPDM hose with couplings (cod. 3F00700809)
– 2 Storz wrenches (cod. 4910002000)
– 4×2.5 50 LM power cord with plug (cod. 8007001000)
– 3×1.5 50 LM sensor wire with plug (cod. 8007004001)
– Monofilter cover (cod. 800804100A)
- AIRTECH PRESS conveyor assembly(cod. 8021031000)
Réf. 971001150E
Cat. C8
EAN : 8099998227768
Public price
12 567,50 € pre-tax
