MIXER FLATMIX 100 atomizing set


Product datasheet
Options
Advice & Documents
Product datasheet
Description

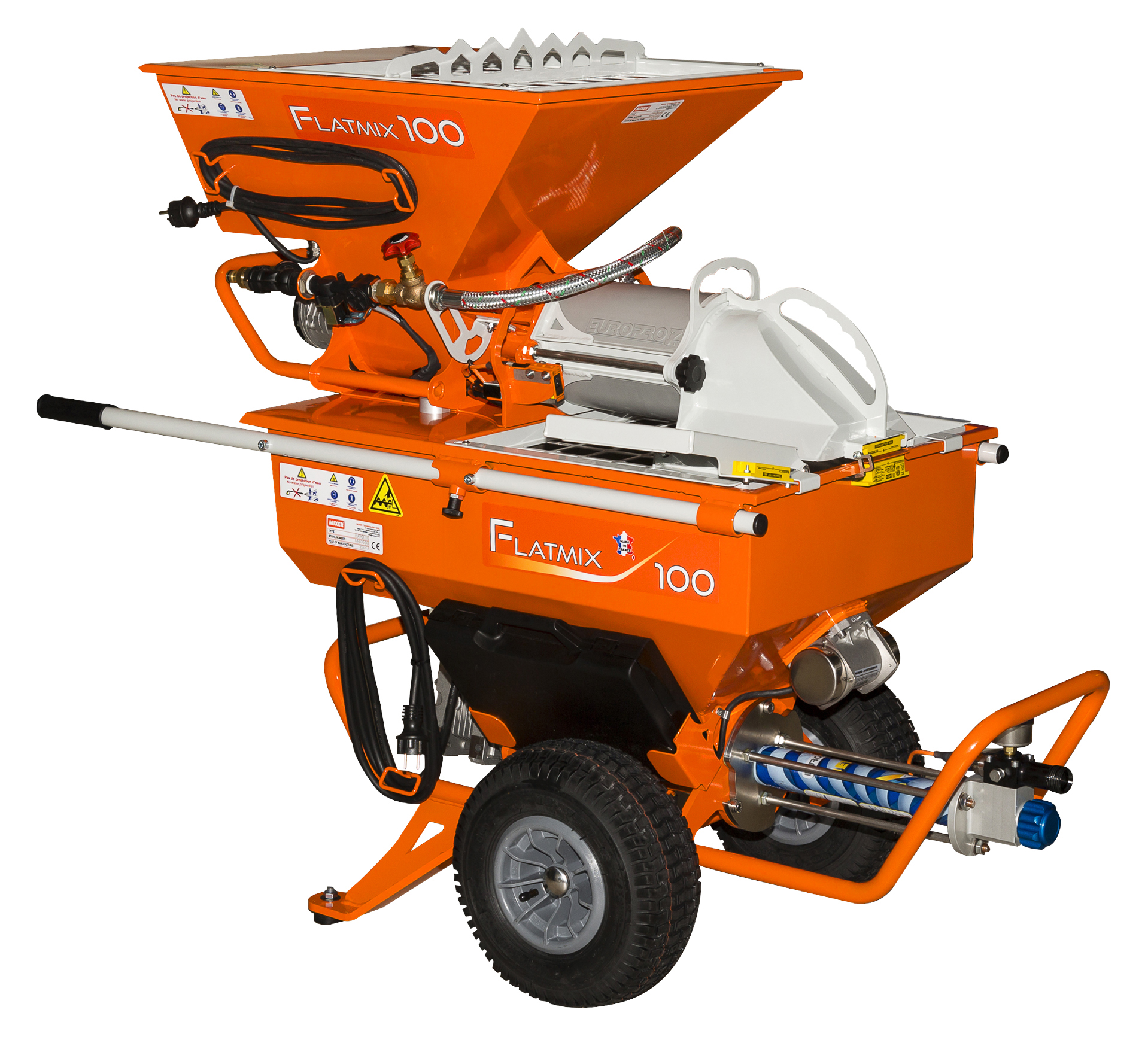

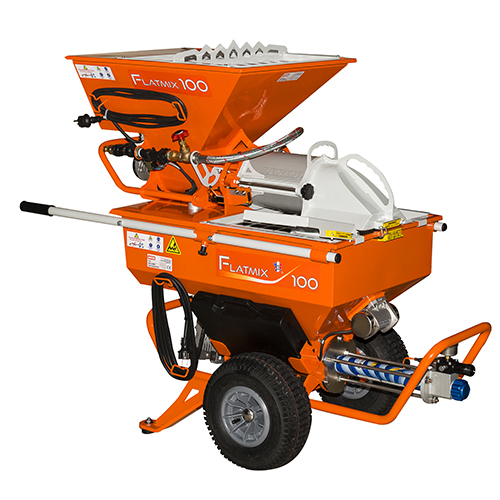

FLATMIX 100 is a high-output assembly specialised in spraying powder surface coatings in addition to ready-to-use products.
Technical characteristics
MACHINE
Tank capacity
60 L
Power supply
230 V / 16 A / 50 and 60 Hz
Motor power
2.2 kW
Max. pressure
110 bar
Flow rate
6 L/min
Pump
volumetric screw pump
Rotor/stator kit
JET 2
Max. nozzle (new)
0.045"
Dimensions (l x w x h)
123 x 72 x 66 cm
Weight
88 kg
Noise level
91 Lwa
MIXER
Tank capacity
40 L
Power supply
230 V - 50 and 60 Hz
Motor power
0.75 kW
Forward/backward rotational speed
280 rpm
Adjustable water dispenser
built-in
Dimensions (l x w x h)
81 x 57 x 49 cm
Weight
41 kg
Delivered with
- a Ø16 x 20 m hose
- a wireless remote control
- a 1L bottle of storage liquid
- a toolbox containing :
  • a spray-gun
  • a TT3 443 nozzle
  • a nozzle holder
  • two cleaning balls
  • three Allen keys Ø2, 5, 8
  • a 17 mm spanner
  • an adjustable plier
  • a cleaning brush
Réf. 3B03205000
Cat. C10
EAN : 8099998147202

 Public price
10 990,00 € pre-tax
