MIXER FLATSPRAY 20 atomizer
Product datasheet
Options
Advice & Documents
Exploded viewsProduct datasheet
Description

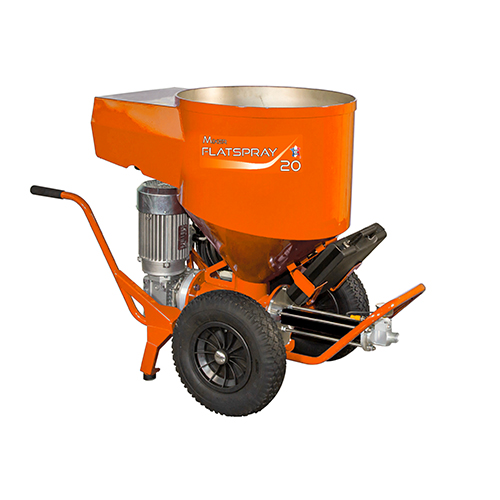

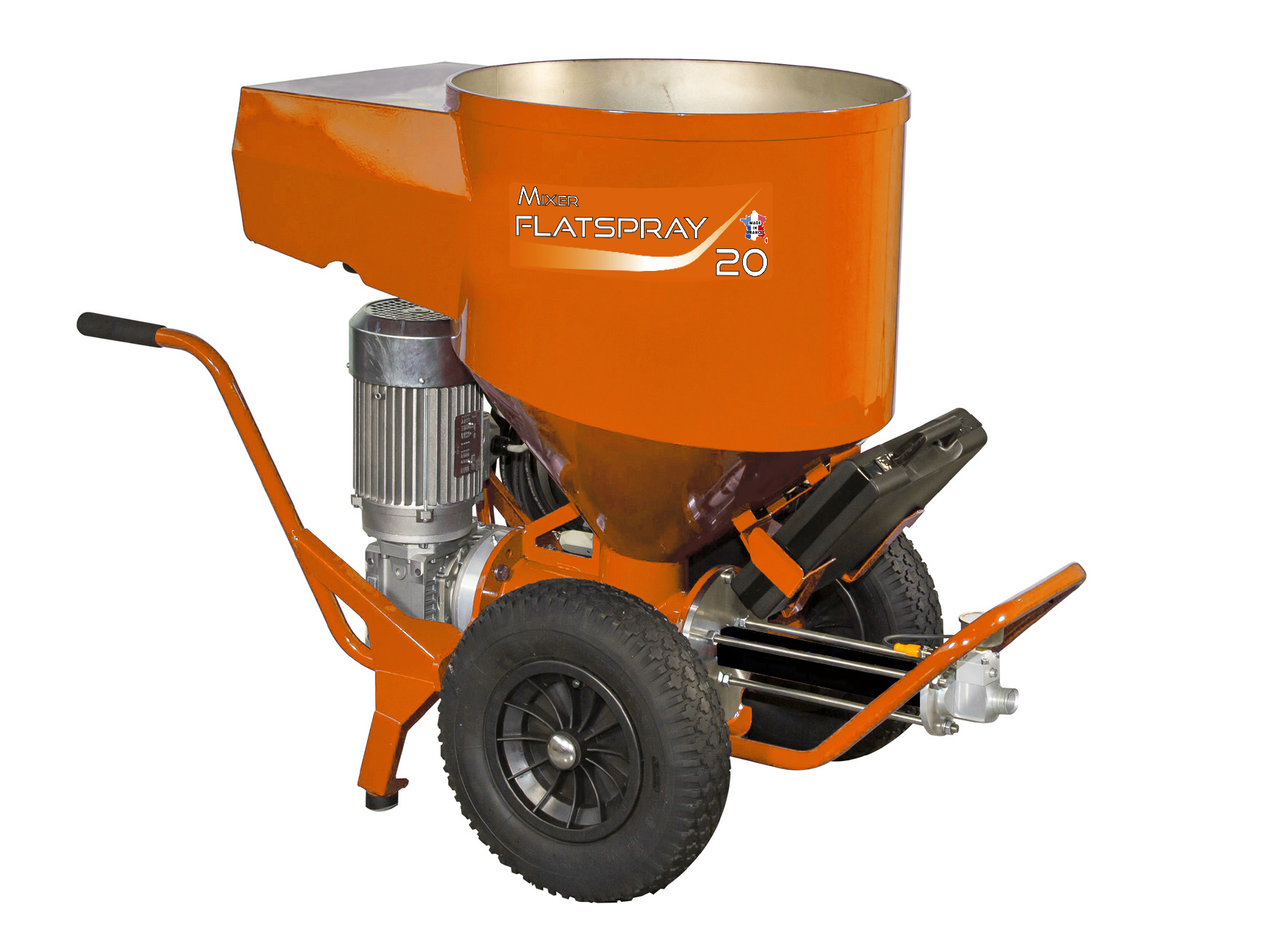

Mixer Flatspray 20 is equipped with a valve-free, easy-to-handle pump with a round stainless steel tank for easy cleaning and a Ø35 drain plug.
It is equipped with large diameter wheels to improve stability and facilitate movement even when the hopper is full.
It is equipped with large diameter wheels to improve stability and facilitate movement even when the hopper is full.
Applications
All ready-mixed thin plasters: skimming plasters, skimming plasters, under-wall waterproofing, bituminous plasters, etc.
Droplet type applications*.
*with an optional kit and a compressor.
*with an optional kit and a compressor.
Technical characteristics
Tank capacity
110 L
Power supply
230 V / 16 A / 50 and 60 Hz
Motor power
2.2 kW
Max. operating pressure
120 bar
Max. spraying flow rate
6 L/min*
Max. spraying distance
40 metres*
Type of pump
volumetric screw pump
Pump
JET 2
Max. nozzle (new)
0.045"
Dimensions (l x w x h)
143 x 65 x 97 cm
Weight
90 kg
Delivered with
– a Ø16 x 20 m hose
– a Jetpro spray-gun with nozzle holder
– a TT3 439 nozzle
– a toolbox containing:
– a Jetpro spray-gun with nozzle holder
– a TT3 439 nozzle
– a toolbox containing:
- a 17 spanner
- two open-end wrenches 22/32 and 27/38
- a multigrip plier
- three Allen keys Ø2, 5 and 8
- two cleaning balls and a cleaning brush
- 1 L of storage liquid
Réf. 3B03203000
Cat. C10
EAN : 8099998143006
Public price
8 080,00 € pre-tax
Description
Mixer Flatspray 20 is equipped with a valve-free, easy-to-handle pump with a round stainless steel tank for easy cleaning and a Ø35 drain plug.
It is equipped with large diameter wheels to improve stability and facilitate movement even when the hopper is full.
It is equipped with large diameter wheels to improve stability and facilitate movement even when the hopper is full.
Applications
All ready-mixed thin plasters: skimming plasters, skimming plasters, under-wall waterproofing, bituminous plasters, etc.
Droplet type applications*.
*with an optional kit and a compressor.
*with an optional kit and a compressor.
Technical characteristics
Tank capacity
110 L
Power supply
230 V / 16 A / 50 and 60 Hz
Motor power
2.2 kW
Max. operating pressure
120 bar
Max. spraying flow rate
6 L/min*
Max. spraying distance
40 metres*
Type of pump
volumetric screw pump
Pump
JET 2
Max. nozzle (new)
0.045"
Dimensions (l x w x h)
143 x 65 x 97 cm
Weight
90 kg
Delivered with
– a Ø16 x 20 m hose
– a Jetpro spray-gun with nozzle holder
– a TT3 439 nozzle
– a toolbox containing:
– a Jetpro spray-gun with nozzle holder
– a TT3 439 nozzle
– a toolbox containing:
- a 17 spanner
- two open-end wrenches 22/32 and 27/38
- a multigrip plier
- three Allen keys Ø2, 5 and 8
- two cleaning balls and a cleaning brush
- 1 L of storage liquid
