Description

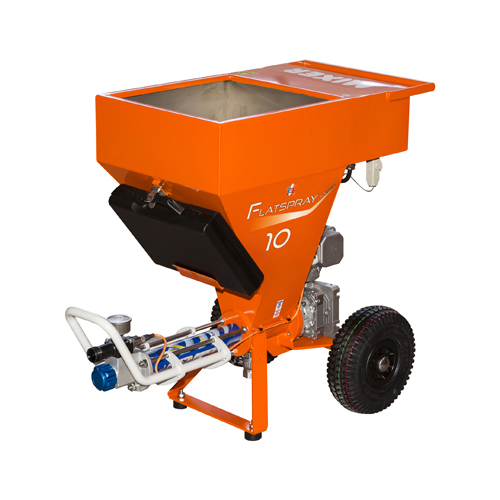

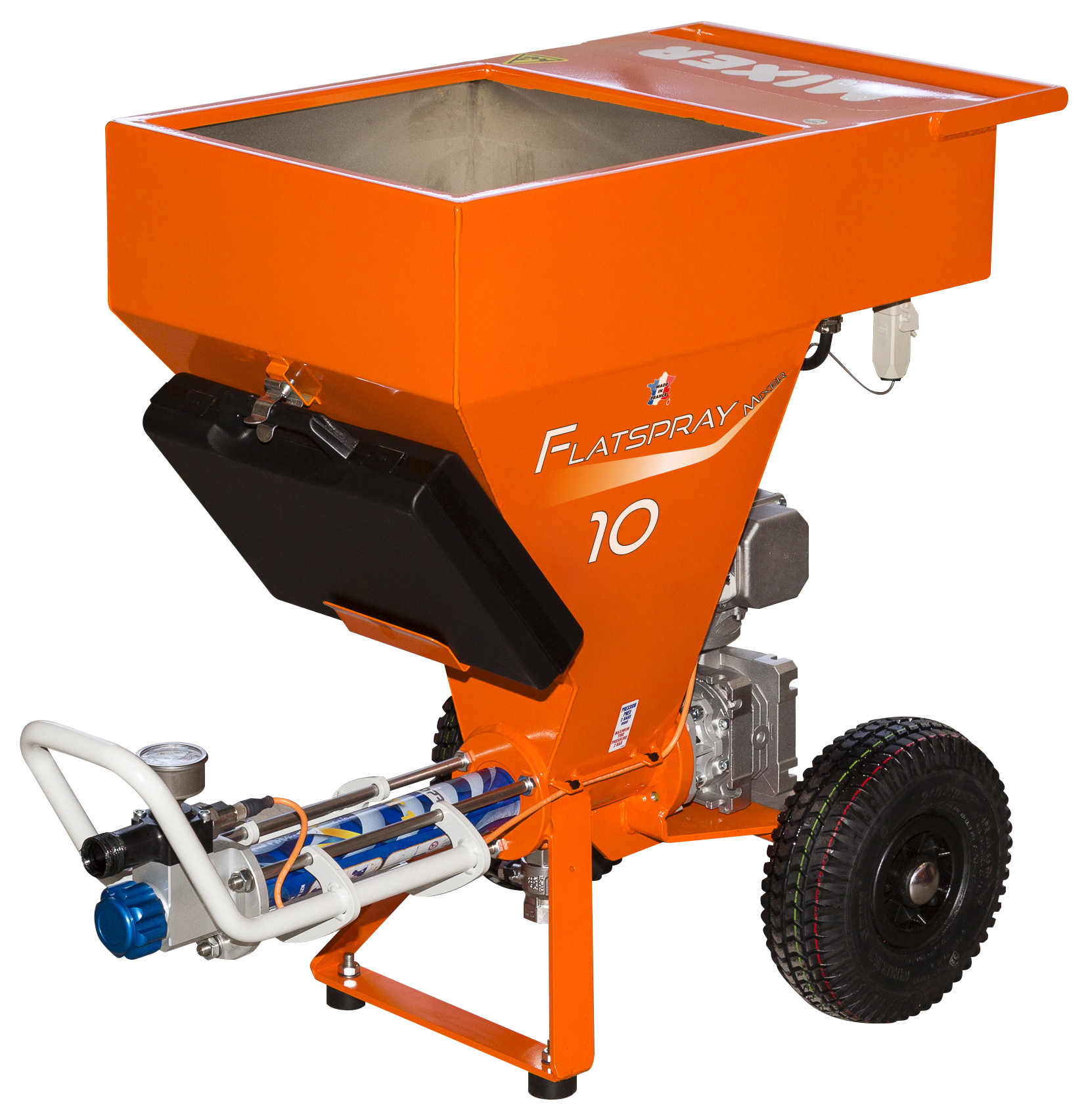

FLATSPRAY 10 enables application of all types of pasty film fillers. It is a compact, quiet and light machine.
It can be moved up and down stairs by only one person, thanks to its trolley-type chassis.
Cleaning can be made rapidly, only at the very end of the poject and the pump can be changed in 5 minutes directly on the construction site.
The machine is equipped with a ball nose pump with integrated filter. Starting is wireless when the gun is opened.
The quick-release hoses make it easier to use on site.
It can be moved up and down stairs by only one person, thanks to its trolley-type chassis.
Cleaning can be made rapidly, only at the very end of the poject and the pump can be changed in 5 minutes directly on the construction site.
The machine is equipped with a ball nose pump with integrated filter. Starting is wireless when the gun is opened.
The quick-release hoses make it easier to use on site.
Applications
All types of ready-to-use film plasters: smoothing coating, raking coating, casing coating, bituminous coating ...
Technical characteristics
Maximum working pressure
80 bar
Maximum product flow-rate
4,5 L/min
Electric motor
1,5 kW
Power
230 V / 50-60 Hz
Type of pump
volumetric screw
Pump
JET 1
Tank capacity
45 L
Max nozzle size
0,045"
Dimensions (L x w x h)
66 x 43 x 71 cm
Weight
53 kg
Noise level
91 Lwa
Delivered with
- a Ø16 x 10 m hose
- a spray-gun with nozzle holder
- a TT3 433 nozzle
- a toolbox containing:
- a spray-gun with nozzle holder
- a TT3 433 nozzle
- a toolbox containing:
- two spanners 17 and 22
- a multigrip plier
- three Allen keys Ø2, 5 and 8
- two cleaning balls and a cleaning brush
- 1 L of storage liquid
Réf. 3B03206000
Cat. C10
EAN : 8099998225580
Public price
6 480,00 € pre-tax
Description
FLATSPRAY 10 enables application of all types of pasty film fillers. It is a compact, quiet and light machine.
It can be moved up and down stairs by only one person, thanks to its trolley-type chassis.
Cleaning can be made rapidly, only at the very end of the poject and the pump can be changed in 5 minutes directly on the construction site.
The machine is equipped with a ball nose pump with integrated filter. Starting is wireless when the gun is opened.
The quick-release hoses make it easier to use on site.
It can be moved up and down stairs by only one person, thanks to its trolley-type chassis.
Cleaning can be made rapidly, only at the very end of the poject and the pump can be changed in 5 minutes directly on the construction site.
The machine is equipped with a ball nose pump with integrated filter. Starting is wireless when the gun is opened.
The quick-release hoses make it easier to use on site.
Applications
All types of ready-to-use film plasters: smoothing coating, raking coating, casing coating, bituminous coating ...
Technical characteristics
Maximum working pressure
80 bar
Maximum product flow-rate
4,5 L/min
Electric motor
1,5 kW
Power
230 V / 50-60 Hz
Type of pump
volumetric screw
Pump
JET 1
Tank capacity
45 L
Max nozzle size
0,045"
Dimensions (L x w x h)
66 x 43 x 71 cm
Weight
53 kg
Noise level
91 Lwa
Delivered with
- a Ø16 x 10 m hose
- a spray-gun with nozzle holder
- a TT3 433 nozzle
- a toolbox containing:
- a spray-gun with nozzle holder
- a TT3 433 nozzle
- a toolbox containing:
- two spanners 17 and 22
- a multigrip plier
- three Allen keys Ø2, 5 and 8
- two cleaning balls and a cleaning brush
- 1 L of storage liquid
