CARD'MIX 40/2 blowing machine
Product datasheet
Options
Advice & DocumentsProduct datasheet
Description

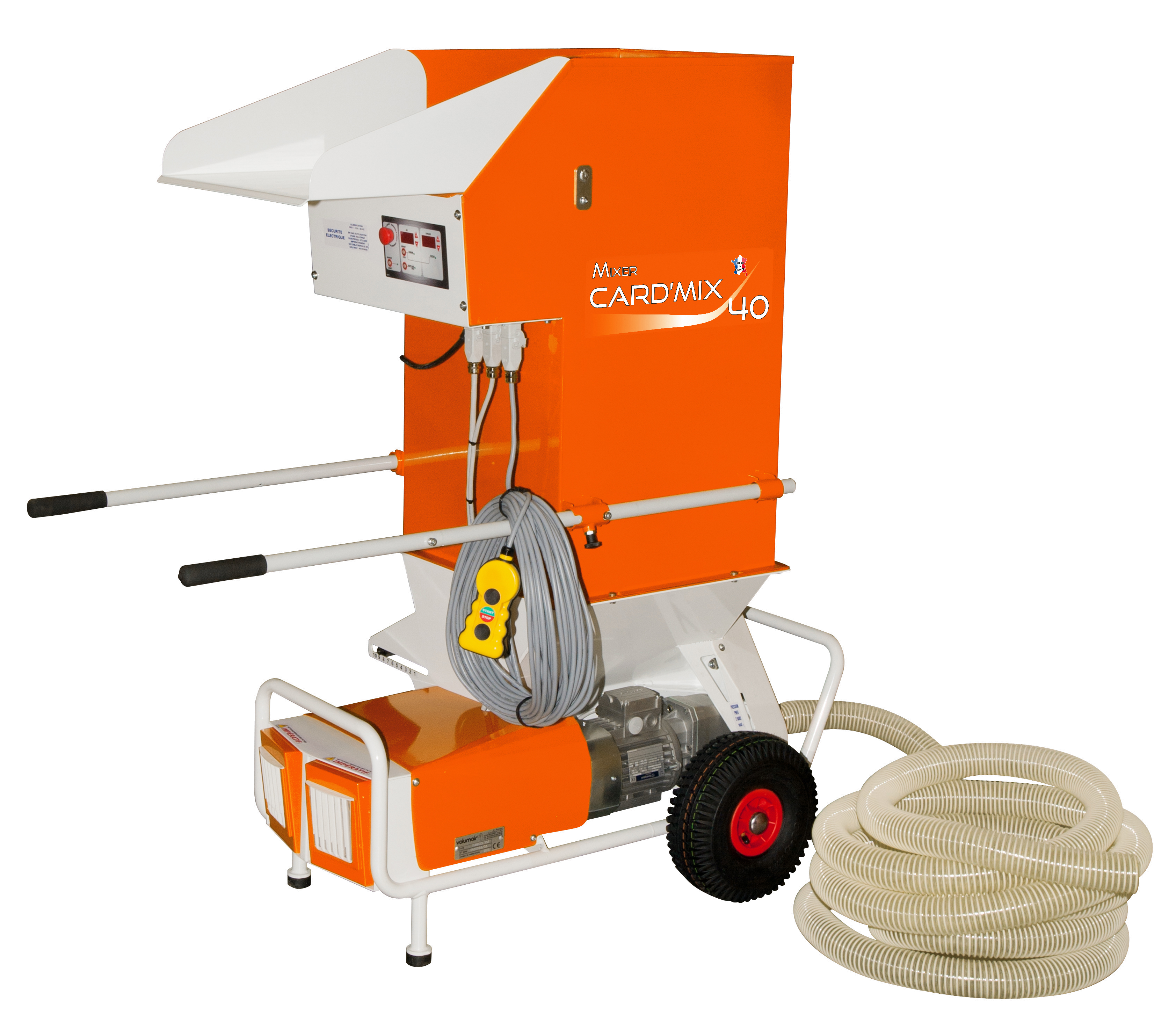

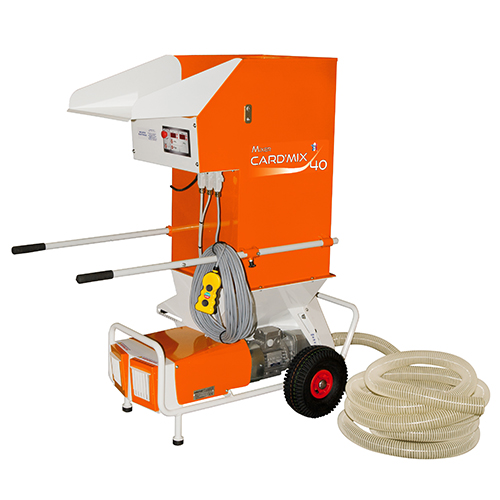

Blowing machine equipped with a reinforced tank and two turbines.
Designed for indoor thermal and acoustic insulation (roofs, ceilings, walls).
Designed for indoor thermal and acoustic insulation (roofs, ceilings, walls).
Applications
Cellulose wadding, glass wool, wood wool, rock wool, fireproofing products, hemp.
Technical characteristics
Electrical supply
230 V / 50 and 60 Hz
Maximum current
16 A
Motor power
0,75 kW
Transmission
by chain
Turbines
5000 L/min - 2 x 1400 W
Electronic control
yes
Pressure
0,3 bar
Flow rate for cellulose wadding
0 to 55 bags/h
Tank capacity
220 L
Suction turbine filter
2
Cooling turbine filter
1
Product hose length
Ø63 x 25 m
Product outlet diameter
63 mm
Inflatable tyres
Ø 300
Wire-guided remote control
25 m - start/stop
Hopper loading width
45 cm
Loading height
122 cm
Dimensions (L x w x h)
116 x 67 x 151 cm
Weight
116 kg
Noise level
100 Lwa
Réf. 3B03702000
Cat. C12
EAN : 8099998150264
Public price
9 490,00 € pre-tax
Description
Blowing machine equipped with a reinforced tank and two turbines.
Designed for indoor thermal and acoustic insulation (roofs, ceilings, walls).
Designed for indoor thermal and acoustic insulation (roofs, ceilings, walls).
Applications
Cellulose wadding, glass wool, wood wool, rock wool, fireproofing products, hemp.
Technical characteristics
Electrical supply
230 V / 50 and 60 Hz
Maximum current
16 A
Motor power
0,75 kW
Transmission
by chain
Turbines
5000 L/min - 2 x 1400 W
Electronic control
yes
Pressure
0,3 bar
Flow rate for cellulose wadding
0 to 55 bags/h
Tank capacity
220 L
Suction turbine filter
2
Cooling turbine filter
1
Product hose length
Ø63 x 25 m
Product outlet diameter
63 mm
Inflatable tyres
Ø 300
Wire-guided remote control
25 m - start/stop
Hopper loading width
45 cm
Loading height
122 cm
Dimensions (L x w x h)
116 x 67 x 151 cm
Weight
116 kg
Noise level
100 Lwa
